Gridwiz Mobility

Gridwiz CCS Tester

  • Payment
    T/T
  • MOQ
    Negotiable
  • Country of sale
    World Wide
  • PRICE
    • EXW

      Depend on quantity

ITEM SPECIFICS

  • Brand
    Gridwiz Mobility
  • origin
    Republic of Korea
  • Size(Capacity)
    471 x 391 x 191 (Wx L XH, mm)
  • Features
    Display : Touch 7 inch display
  • Function
    Memory : 2GB DDR3 SDRAM


PRODUCT DESCRIPTION

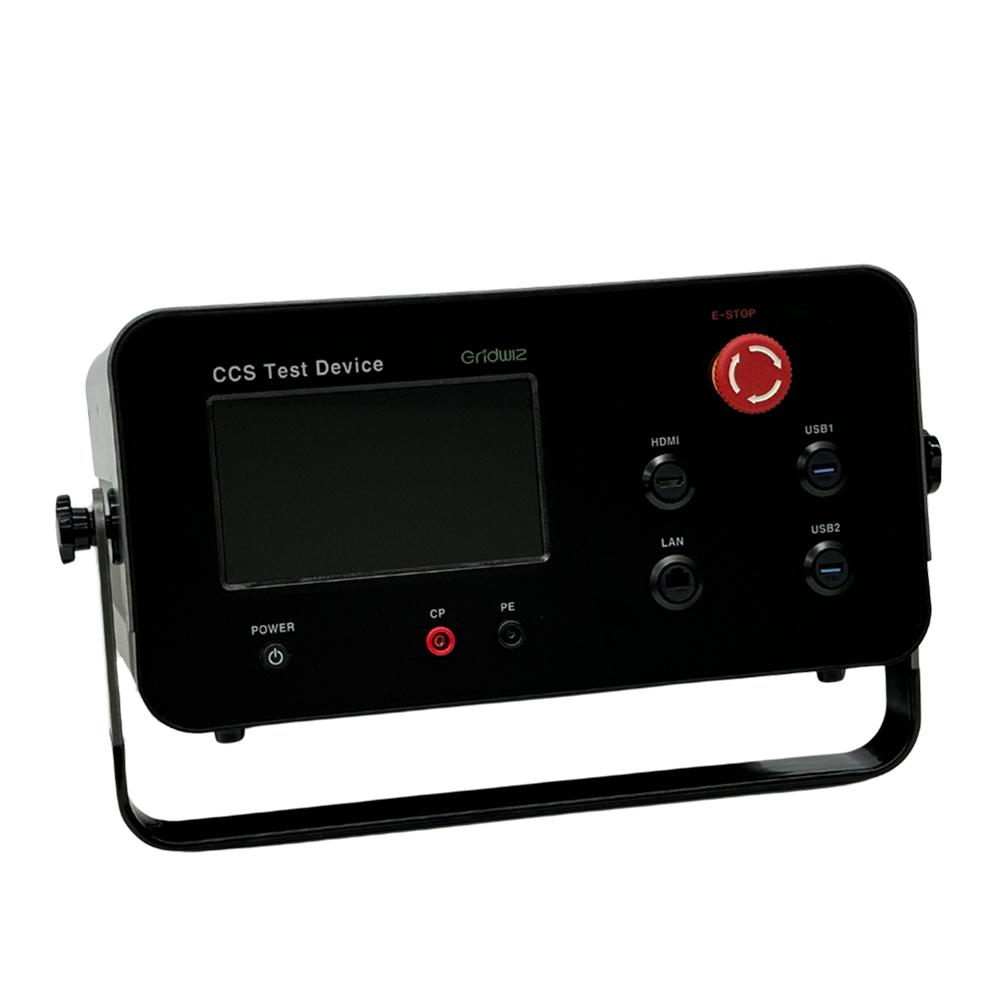

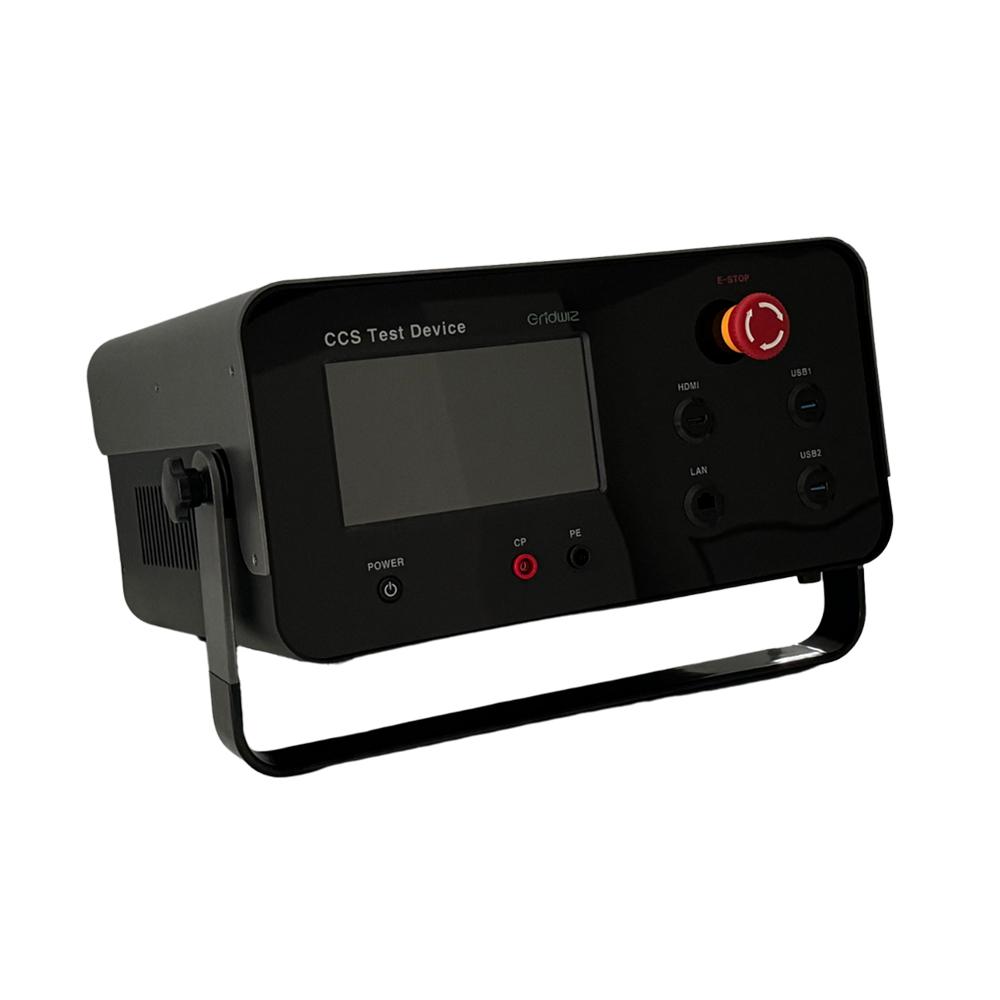

Gridwiz CCS Tester



EV Simulator for CCS EVSE Development

GRIDWIZ CCS TESTER is an advanced EV Simulator designed to facilitate communication between EV Chargers and Electric Vehicles (EVs) in accordance with the DIN SPEC 70121 and ISO 15118 standards.



ITEM Description
CCS Tester Electric Communication Controller / Supply Equipment Controller Signal Level Attenuation Characterization (SLAC)
PWM Detection and Control Pilot state Transition in accordance with IEC 6185101
Simulate AC/DC Charging Sequences Based on ISO 15118 Standards
Provides Data Export Functionality for EV Charger Testing
PLC Technology HomePlug Green PHY (IEEE 1901 BPL)
CCS Standard DIN SPEC 70121, ISO 15118
Interface (Expansion) CP, PE (PLC communication interface)
USB (Exporting Test data)
LAN / WAN (Internal / External Ethernet)
CCS Type 1 Inlet ( Optional: CCS Type 2 Inlet)
Dimension 471 x 391 x 191 (Wx L XH, mm)
Display Touch 7 inch display
Power AC 110 - 240 V



EV Simulator for CCS EVSE Development



GRIDWIZ CCS TESTER is an advanced EV Simulator designed to facilitate communication between EV Chargers and Electric Vehicles (EVs) in accordance with the DIN SPEC 70121 and ISO 15118 standards.

This cost-effective solution integrates an EVCC and BMS Simulator, allowing for accurate testing and simulation without requiring a physical EV. It is ideal for testing communication protocols during charger development, maintenance, and product inspection. The user can check the following data in each charging sequence:

- PWM signaling based on IEC 61851 (CP duty, CP voltage)
- SLAC sequence for PLC association of HomePlug Green PHY standard
- HLC (High Level Communication) of charging protocol for data communications
