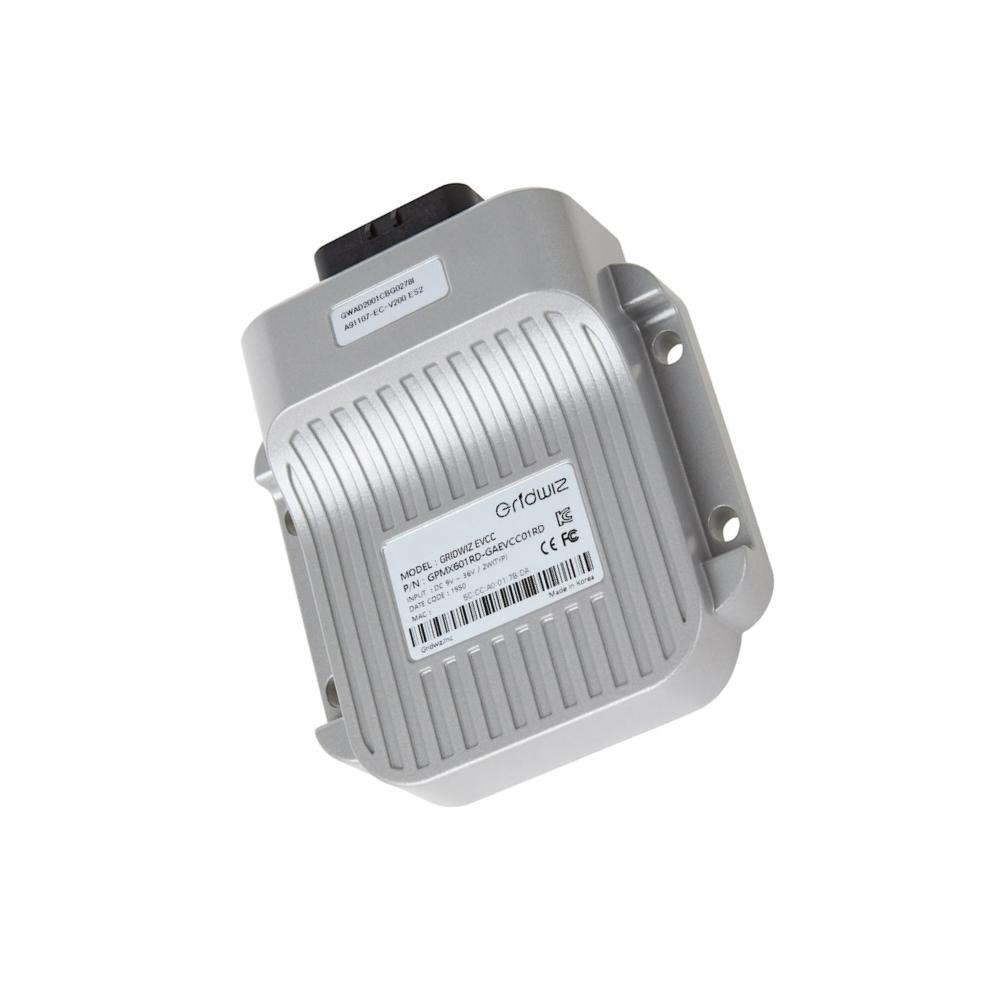

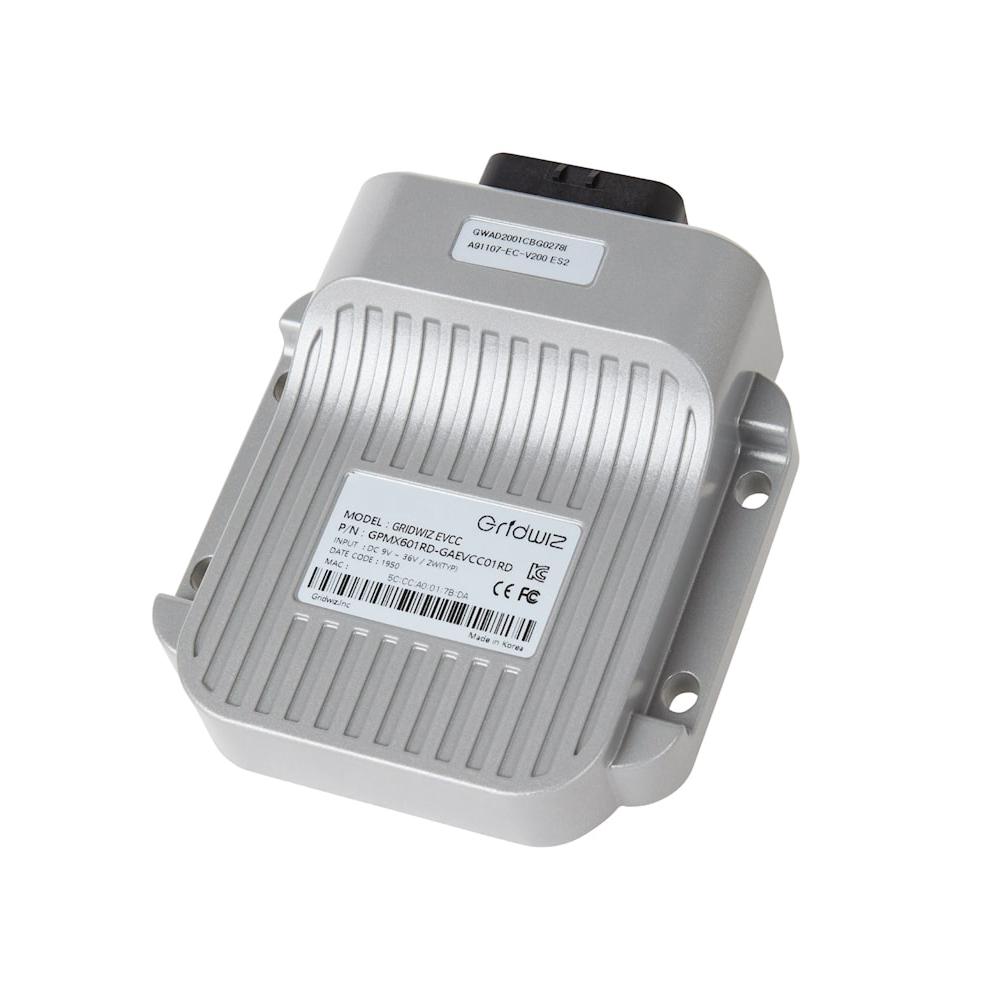

Gridwiz’s EVCC is a communication modem for electric vehicle charging communication. It supports international standards such as DIN and ISO 15118./p>
ITEM | Description |
---|---|
CPU | ARM Cortex®-A7 |
Memory | 2GB DDR3 SDRAM |
Interfaces to the EV | CAN 2.0b, J1939, UDS Control Pilot (CP): PLC (HPGP) and PWM |
Interfaces to the EVSE (SECC) | CP, PP, PE |
Expansion Interfaces | Proximity Detection/Plug Present port Inlet Actuator/Latch Motor control port RS-232 debug port GPIOs: Four I/O ports (Optional) Inlet Temperature Sensor (PT-1000) Input |
Inlet Support | Type 1 (SAE J1772), Type 2 (IEC 62196), CCS1, CCS2, NACS |
PLC Technology | HomePlug Green PHYTM 1.1 |
Power Consumption (W) | Typical : 2W Max : 3.6W Power Down Mode : 0.006W |
Power Consumption in Current Value (I) | Typical - 12Vdc / 165mA - 24Vdc / 83mA Max - 12Vdc / 300mA - 24Vdc /150mA Power Down Mode - 12Vdc / 0.52mA - 24Vdc / 0.25mA |
Operating Voltage | 9 ~ 36 VDC |
Environment | Operating Temp.: -40℃ ~ +85℃ Operating Humid.: ≤ 95%RH |
Operating System | RTOS |
Dimensions | 113 x 140 x 41 (W x L x H, mm) |
Weight | 410g |
Housing degree of protection | IP68 |
EMI/EMC | CISPR25, ISO 11452-2/4, ISO 16750-2 |
Certification | KC, CE, FCC, REACH, RoHS, E-Mark |
Gridwiz EVCC (Electric Vehicle Communication Controller) serves as a communication modem for EVs, facilitating the exchange of communication messages with EV chargers during charging. The EVCC is designed to support reliable stand-alone operation, capable of functioning with minimal control by other controllers (VCU, BMS, etc.), independently processing most communication protocols required for EV charging in accordance with DIN SPEC 70121 and ISO 15118.
