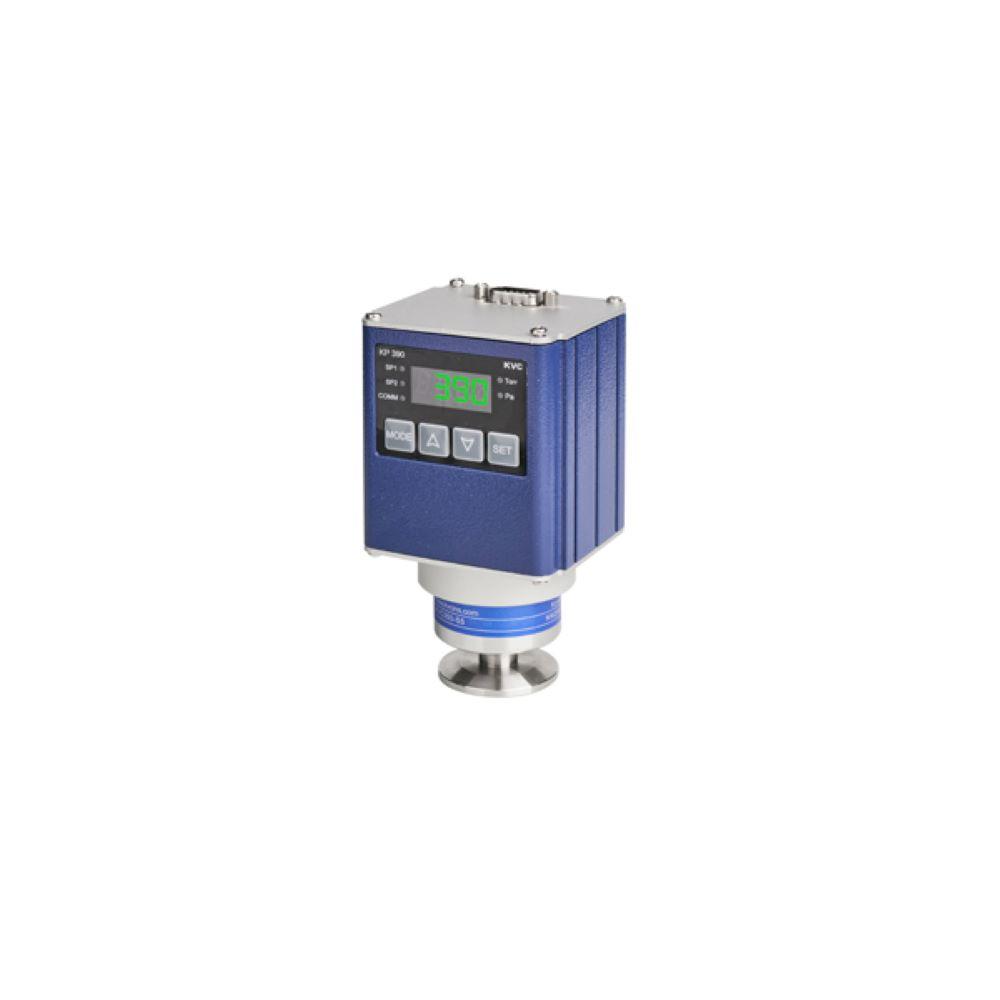

KP390 is made of Compact design. Only the sensor can be separate and
It can be used over a wide measurement range.
KP390 is designed to provide reliability and precise performance, and
output is used to control various vacuum systems and pressures.
Key Feature
- KP390 is a combination gauge using MEMS Pirani Sensor & Piezo Resistive Silicon Sensor to provide precise values with good precision and fast response speed.
- Only Sensors can be replaced separately, reducing maintenance costs.
- Compact design and accuracy. stability. reliability. reproducibility. durability will help with company quality and productivity.
- Made of all-metal, there is no problem with RF interference.
- CE-certified product.

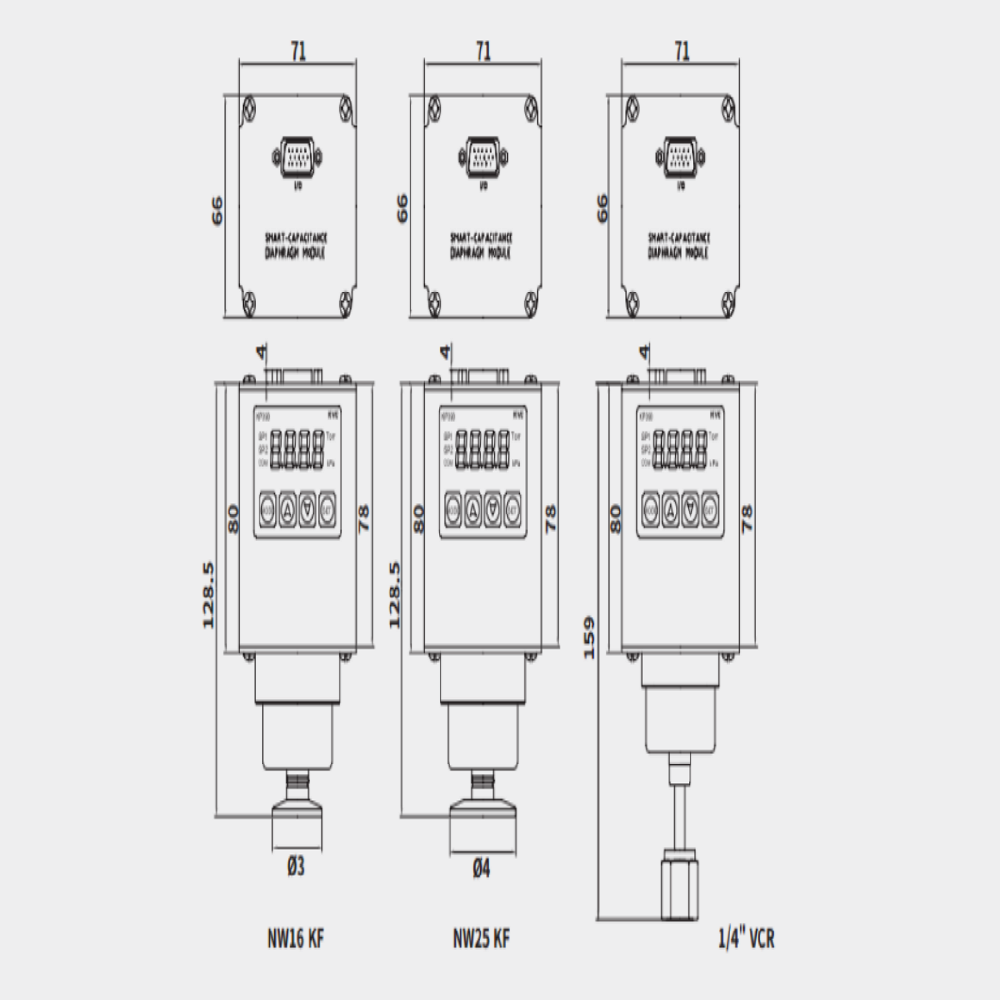

- Sensor Fitting Size : 1/8NPT, 15mmO.D, NW16KF, NW25KF, 1/4VCR, 1.33CF, 2.75CF, 1/2VCR.
KP390 Specification
Controller Specification
| Measuring Range for Air and N2 |
1.0E-4 ~ 1500 Torr
|
| Operating Temperature | 0 ~ 60 ℃ |
| Storage Temperature | - 40 ~ 70 ℃ |
| Case Material | Aluminum |
| Display | 4 Digit LED, Stuats LED |
| Set Point Relays | 2 PointSPST ( 1A / 30VDC, 0.5A / 125VAC) |
| Analog Output |
Log Scale ( 0 ~ 7.18Vdc ) / Lin Scale ( 0 ~ 10Vdc )
|
| Digital Interface | RS485 ASCII, RS485 MODBUS |
| Power Required | DC 24V / 200mA |
| Weight | 430 g ( with sensor ) |
| Mounting | Field flange mounting |
| Sensor Type |
Wide Range Gauge ( KVC350 - XX )
|
| Sensor Materials |
Piezo Resistive silicon Sensor with sus housing
MEMS Pirani Sensor
|
| Internal Volumn | 5cm³ |
| Gauge Bakeout Temperature | 150 ℃ Maximum, NON - operating |
| Case Materials | 304 Stainless steel, borosilicate glass, Kovar |
