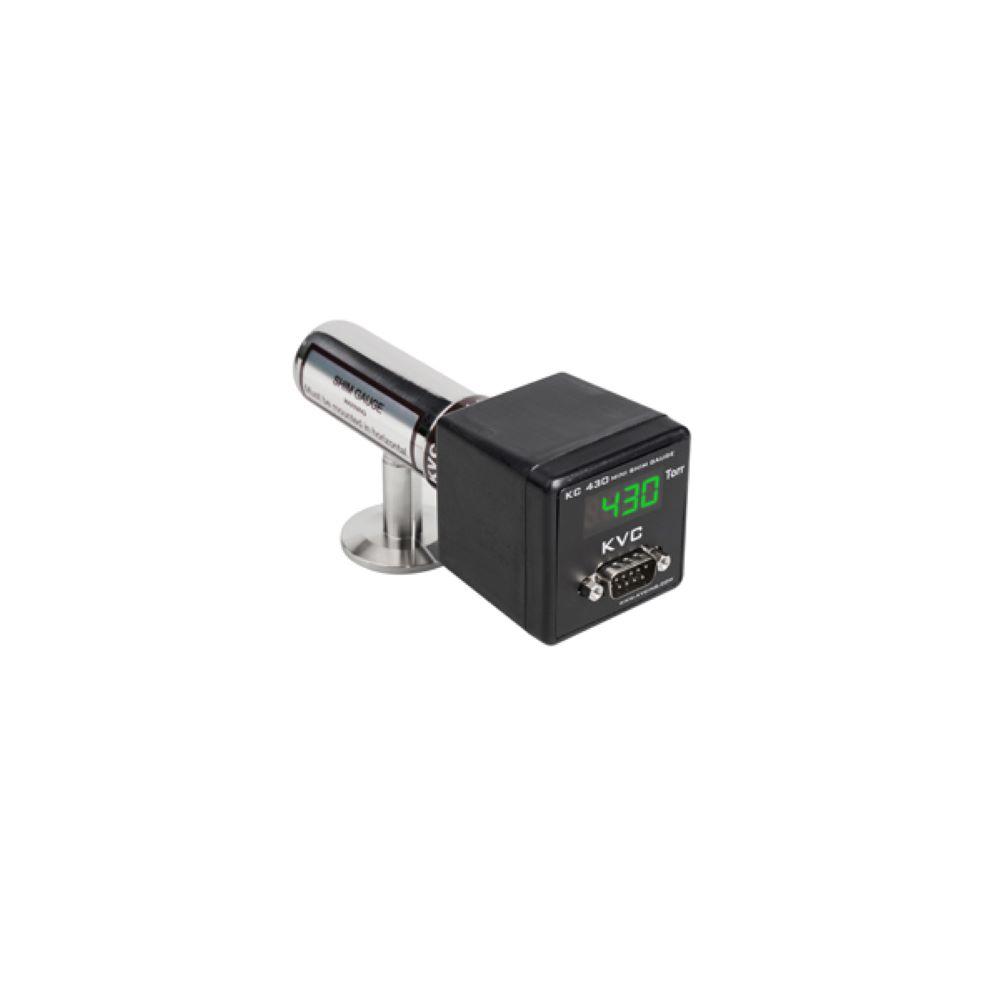

KC430 vacuum gauge is measures vacuum with an integral sensor and indicator,
and uses the Analog output to control the pressure of various vacuum systems.
Key Feature
- KC430 vacuum gauge is compact design and accuracy, stability, reliability, reproducibility, durability will help with company quality and productivity.
- CE-certified product.
- Sensor Fitting Size : 1/8NPT, 15mmO.D, NW16KF, NW25KF, 1/4VCR, 1.33CF, 2.75CF, 1/2VCR.
KC430 Specification
Controller Specification
| Measuring Range for Air and N2 |
1.0E-3 ~ 1000 Torr
|
| Operating Temperature | 0 ~ 60 ℃ |
| Storage Temperature | - 40 ~ 70 ℃ |
| Compliance | CE ( EMC ) |
| Case Material | ABS Glass |
| Display | 4 Digit LED |
| Set Point Relays | None |
| Analog Output |
Log Scale ( -3 ~ 3Vdc )
Lin Scale ( 0 ~ 10Vdc )
|
| Digital Interface | None |
| Power Required | DC24CV / 200mA |
| Weight | 260g ( with Sensor ) |
| Mounting | Local mounting |
| Sensor Type |
SHIM Gauge ( KVC400 - XX )
|
| Sensor Materials |
Gold Plated tungsten or Platinum
|
| Internal Volumn | 45cm³ |
| Gauge Bakeout Temperature | 150 ℃ Maximum, NON - operating |
| Case Materials | 304 Stainless steel, borosilicate glass, Kovar |
