Energy Storage System, Energloo^TM

• Energloo^TM is Lithium-polymer modular battery unit can be scaled to meet various energy needs. Utilizing advanced BMS, it provides longer battery life compared to other Lithium batteries in the market.

• Energloo^TM is a light weight rechargeable battery system based on environmentally friendly Lithium polymer technology, which is less than one-half weight of comparably powered lead-acid battery solutions. It also provides wide range ofoperating temperature (-20° ~ 60°C), minimal standby power consumption, minimum of 1000 cycles and high rate of power output (5C).

• The BMS installed in Energloo^TM provides cell balancing and monitors SOC level of individual cells, thermal condition, voltage, and current.

Features

• Surge Protection
• Over charging & discharging prevention
• Low voltage alarm
• Cooling System
• Cell Balacing
• Current Based SOC Estimation - (Coulomb Counting)
• RS232C. CAN Bus Interface forcommunication

Benefits

• High charge/discharge rate
• Light weight
• Extended battery life
• Wide range of operation temperature (-20° ~ 60°C)
• Power saving function
• Long shelf life
• Accurate SOC estimation
• Scalable

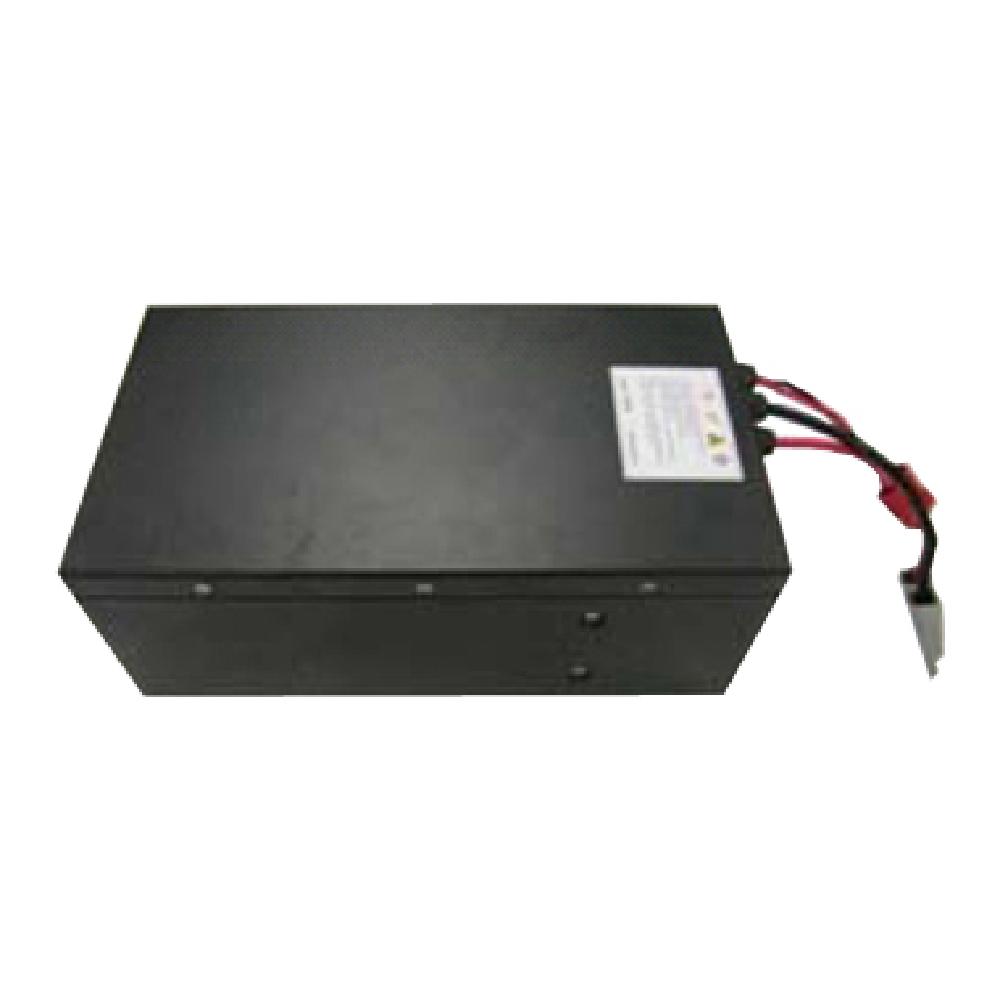

UPS

• Energloo^TM is integrated with BMS (Battery MAnagement System) which help extend battery life and allows precise monitor/control over power flow for enhanced safety and optimal condition for the cells.

• Unlike lead-acid, NiCd, NiMH battery technologies, Lithium-polymer uses environmentally friendly materials and does not require special disposal process.

	Model	PRO-053ER014S (52V 53Ah)
	MECHANICAL
	L x W x H (mm)	365mm x 225mm x 157mm
	Weight (Kg)	20±2kg
	ELECTRICAL
	Nominal voltage	51.8V (3.7V/Cell)
	Operating voltage	42.0~58.8V (3.00~4.20V/Cell)
	Nominal capacity(1C charge/ 1C discharge)	53Ah
	Recommended standard charge	13A (0.25C)
	Recommended standard discharge	159A (3C)
	Peak discharge current	212A (4C)
	Cycle Life(cycles)	1000Cycle At 23±3°C (100% DOD)
	Communication	CAN
	Cells in Module	14 (14S 1P, 40Ah)
	ENERGY & PERFORMANCE
	Nominal capacity	53Ah
	Power(continuous)	8236Wh
	Power(peak)	10981Wh
	ENVIRONMENTAL
	Operating temperature(charge)	0~+40°C
	Operating temperature(discharge)	-20~+60°C
	Storage temperature	1month -20~+60°C, 3month -20~+45°C, 1year -20~+20°C
	Self discharge rate	< 1% (monthly at room temperature)
