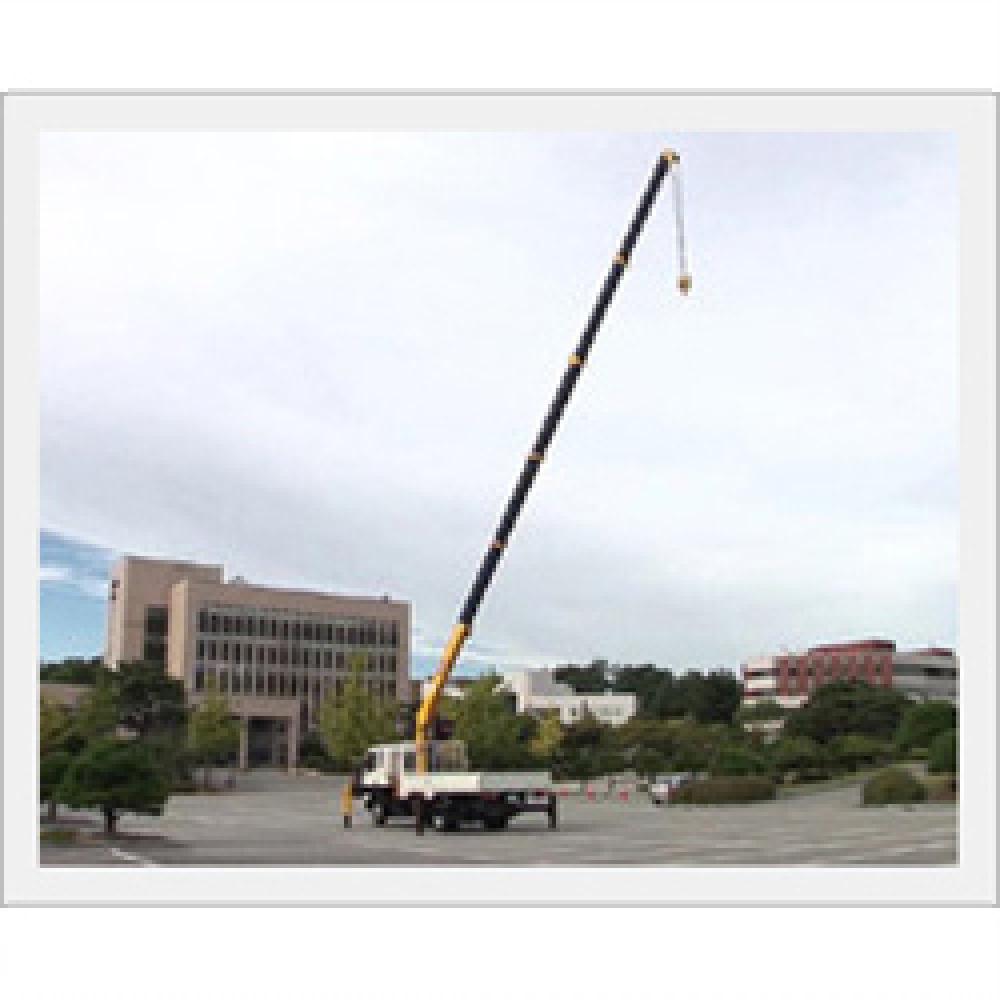

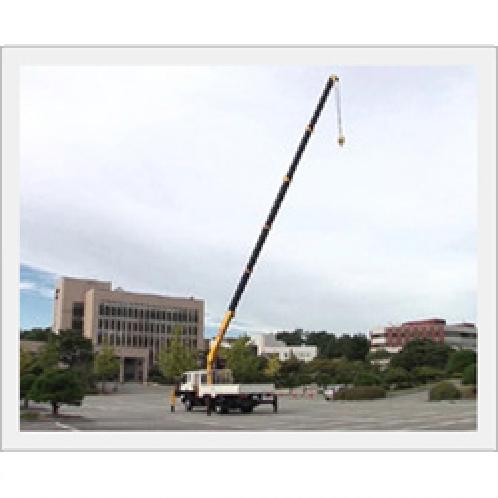

Hydraulic equipment for loading and unloading heavy weights.

It's suitable for the customer to travel long distance with an equipment Because it is mounted on the back of a truck. It has high mobility.

Truck mounted crane is multi-purpose equipment. It can be used for heavy mass transport and mainly used in the construction sites.

Features

1. The biggest working area in the same field.
2. Derrick Cushion function - Installing valve and operating, absorb shock.
3. Appling massive separated Oil-Tank - Maximizing thermal efficiency.
4. Big parasol installation - Blocking sun's ray.
5. Install rotation prevention pin - Safety in drive.
6. Ideal design of Sub Winch Wire position - Prevent obstacle in working.

Specification

Crane

• Max lifting capacity : 18000 kg/m
• Max working height : 23.5(26.5)m
• Max liftting weight: 7.5/2 ton/m
• Undulation angle : '-17~80°
• Rotation speed : 1.9 rpm
• Rotation angle : Endless 360°
• Boom : Hexagonal 6 step

Outrigger

Hydraulic system

• Power source : P.T.O
• Tank volume : 150 liter
• Rated oil flow : 60 liter/min
• Rated oil pressure : 210 kg/cm²

Other

• Chassis : Over 7 ton

- Product image and specification represented here may be changed without prior notice for product performance enhancement and may differ from the actual product.
